AMD R5 340X 2GB (Used)

Specifications:

2GB

64bit

DDR3

4,000.00

20 People watching this product now!
  • Pick up from the Shakir Traders Store

To pick up today

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

Shipping Cost may varry on diffrent products. Kindly confirm shipping cost before placing order.

Payment Methods:

Description

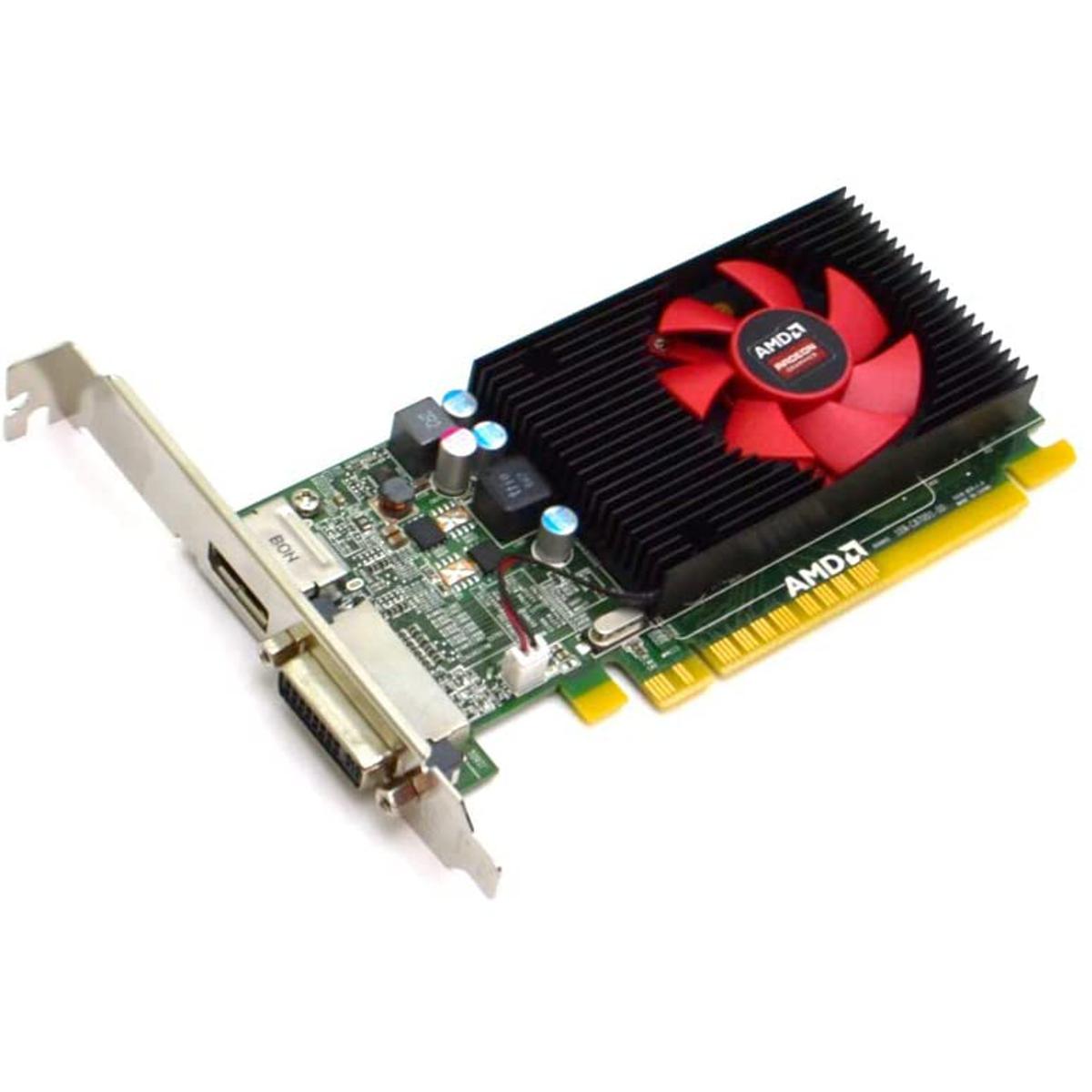

AMD R5 340X 2GB (Used)

AMD R5 340X 2GB (Used)

The Radeon R5 340X OEM was a graphics card by AMD, launched on May 5th, 2015. Built on the 28 nm process, and based on the Oland graphics processor, in its Oland XT variant, the card supports DirectX 12. Even though it supports DirectX 12, the feature level is only 11_1, which can be problematic with newer DirectX 12 titles. The Oland graphics processor is a relatively small chip with a die area of only 77 mm² and 950 million transistors. It features 384 shading units, 24 texture mapping units, and 8 ROPs. AMD has paired 2,048 MB DDR3 memory with the Radeon R5 340X OEM, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 900 MHz, memory is running at 1000 MHz.
Being a single-slot card, the AMD Radeon R5 340X OEM does not require any additional power connector, its power draw is rated at 65 W maximum. Display outputs include: 1x DVI, 1x DisplayPort 1.2. Radeon R5 340X OEM is connected to the rest of the system using a PCI-Express 3.0 x8 interface. The card measures 145 mm in length, and features a single-slot cooling solution.

Graphics Processor

GPU Name
Oland
GPU Variant
Oland XT
(215-0837006)
Architecture
GCN 1.0
Foundry
TSMC
Process Size
28 nm
Transistors
950 million
Density
12.3M / mm²
Die Size
77 mm²
Chip Package
FCBGA-962

Graphics Card

Release Date
May 5th, 2015
Generation
Pirate Islands
(R5 300)
Predecessor
Volcanic Islands
Successor
Arctic Islands
Production
End-of-life
Bus Interface
PCIe 3.0 x8

Clock Speeds

GPU Clock
900 MHz
Memory Clock
1000 MHz
2 Gbps effective

Memory

Memory Size
2 GB
Memory Type
DDR3
Memory Bus
64 bit
Bandwidth
16.00 GB/s

Render Config

Shading Units
384
TMUs
24
ROPs
8
Compute Units
6
L1 Cache
16 KB (per CU)
L2 Cache
128 KB

Theoretical Performance

Pixel Rate
7.200 GPixel/s
Texture Rate
21.60 GTexel/s
FP32 (float)
691.2 GFLOPS
FP64 (double)
43.20 GFLOPS (1:16)

Board Design

Slot Width
Single-slot
Length
145 mm
5.7 inches
TDP
65 W
Suggested PSU
250 W
Outputs
1x DVI
1x DisplayPort 1.2
Power Connectors
None
Board Number
109-C87051-00

Graphics Features

DirectX
12 (11_1)
OpenGL
4.6
OpenCL
2.1 (1.2)
Vulkan
1.2.170
Shader Model
6.5 (5.1)
