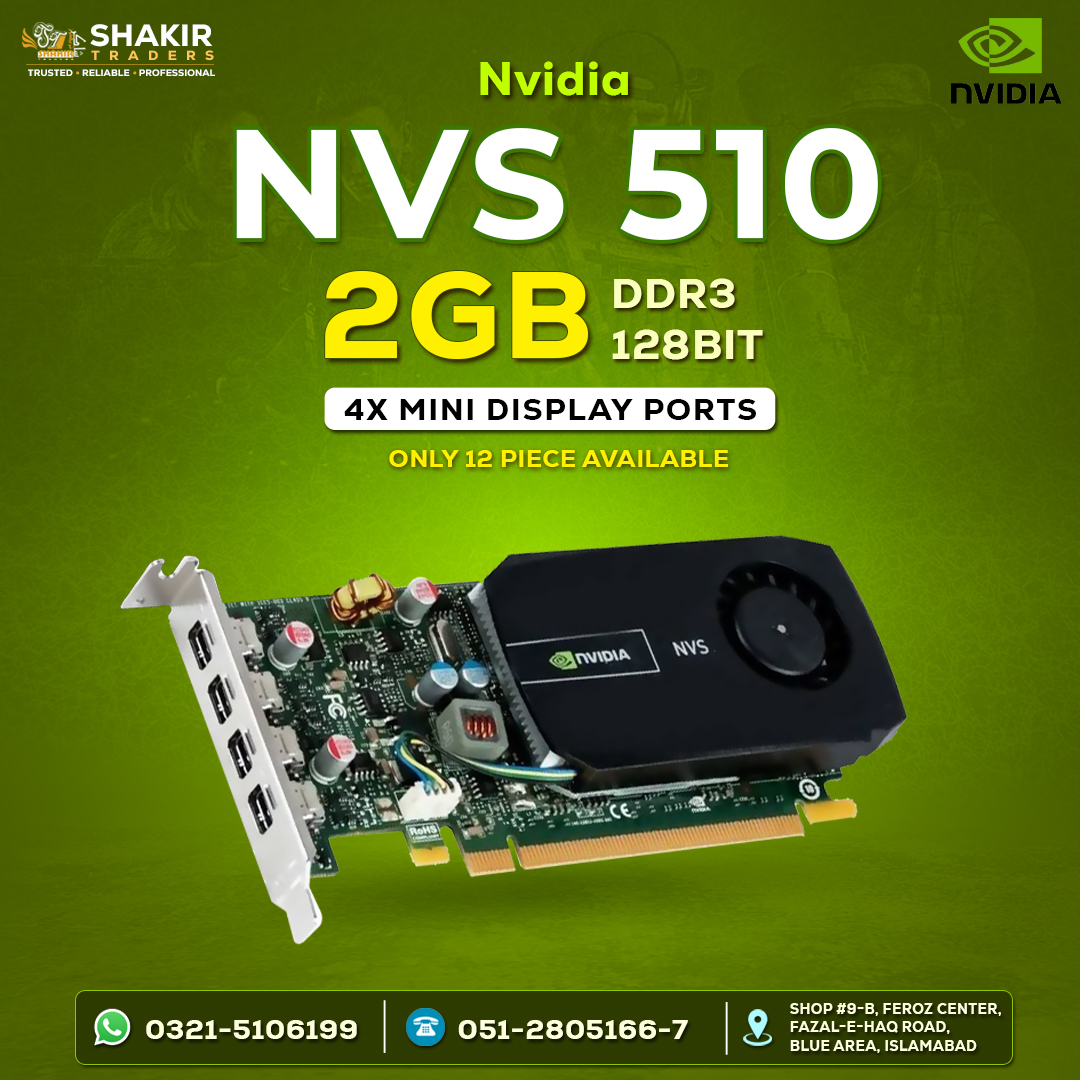

NVIDIA NVS 510 2GB (Used)

NVIDIA NVS 510 2GB (Used)

The NVS 510 was a high-end professional graphics card by NVIDIA, launched on October 23rd, 2012. Built on the 28 nm process, and based on the GK107 graphics processor, in its GK107-301-A2 variant, the card supports DirectX 12. The GK107 graphics processor is an average sized chip with a die area of 118 mm² and 1,270 million transistors. Unlike the fully unlocked GeForce GT 640 OEM, which uses the same GPU but has all 384 shaders enabled, NVIDIA has disabled some shading units on the NVS 510 to reach the product’s target shader count. It features 192 shading units, 16 texture mapping units, and 16 ROPs. NVIDIA has paired 2,048 MB DDR3 memory with the NVS 510, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 797 MHz, memory is running at 891 MHz.
Being a single-slot card, the NVIDIA NVS 510 does not require any additional power connector, its power draw is rated at 35 W maximum. Display outputs include: 4x mini-DisplayPort 1.2. NVS 510 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 160 mm in length, and features a single-slot cooling solution. Its price at launch was 449 US Dollars.
