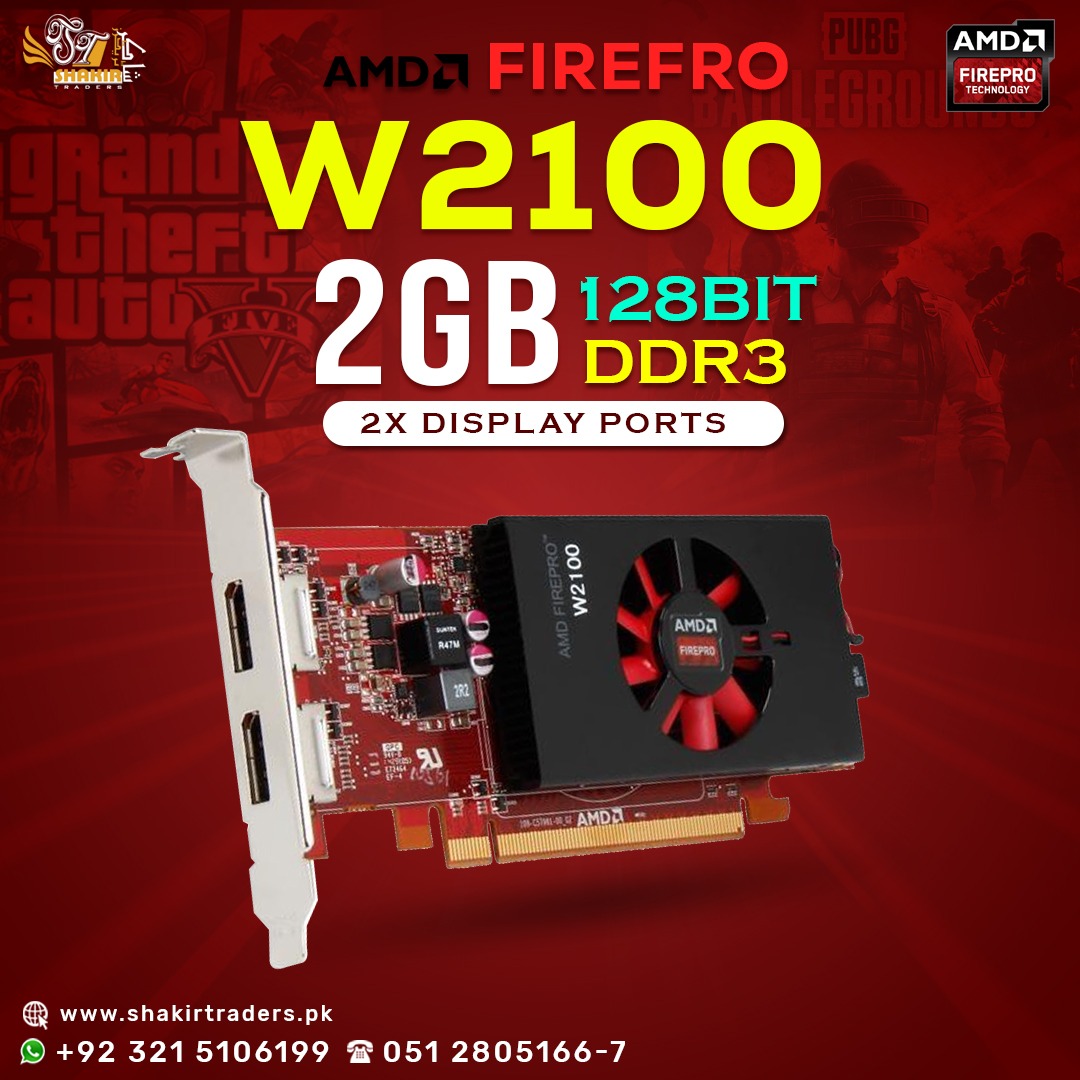

AMD FirePro W2100 2GB (Used)

AMD FirePro W2100 2GB (Used)

The FirePro W2100 was a professional graphics card by AMD, launched on August 12th, 2014. Built on the 28 nm process, and based on the Oland graphics processor, the card supports DirectX 12. The Oland graphics processor is a relatively small chip with a die area of only 77 mm² and 950 million transistors. Unlike the fully unlocked Radeon HD 8670 OEM, which uses the same GPU but has all 384 shaders enabled, AMD has disabled some shading units on the FirePro W2100 to reach the product’s target shader count.

It features 320 shading units, 20 texture mapping units, and 8 ROPs. AMD has paired 2,048 MB DDR3 memory with the FirePro W2100, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 630 MHz, which can be boosted up to 680 MHz, memory is running at 900 MHz.

Being a single-slot card, the AMD FirePro W2100 does not require any additional power connector, its power draw is rated at 26 W maximum. Display outputs include: 2x DisplayPort 1.2. FirePro W2100 is connected to the rest of the system using a PCI-Express 3.0 x8 interface. The card measures 168 mm in length, 69 mm in width, and features a single-slot cooling solution.
