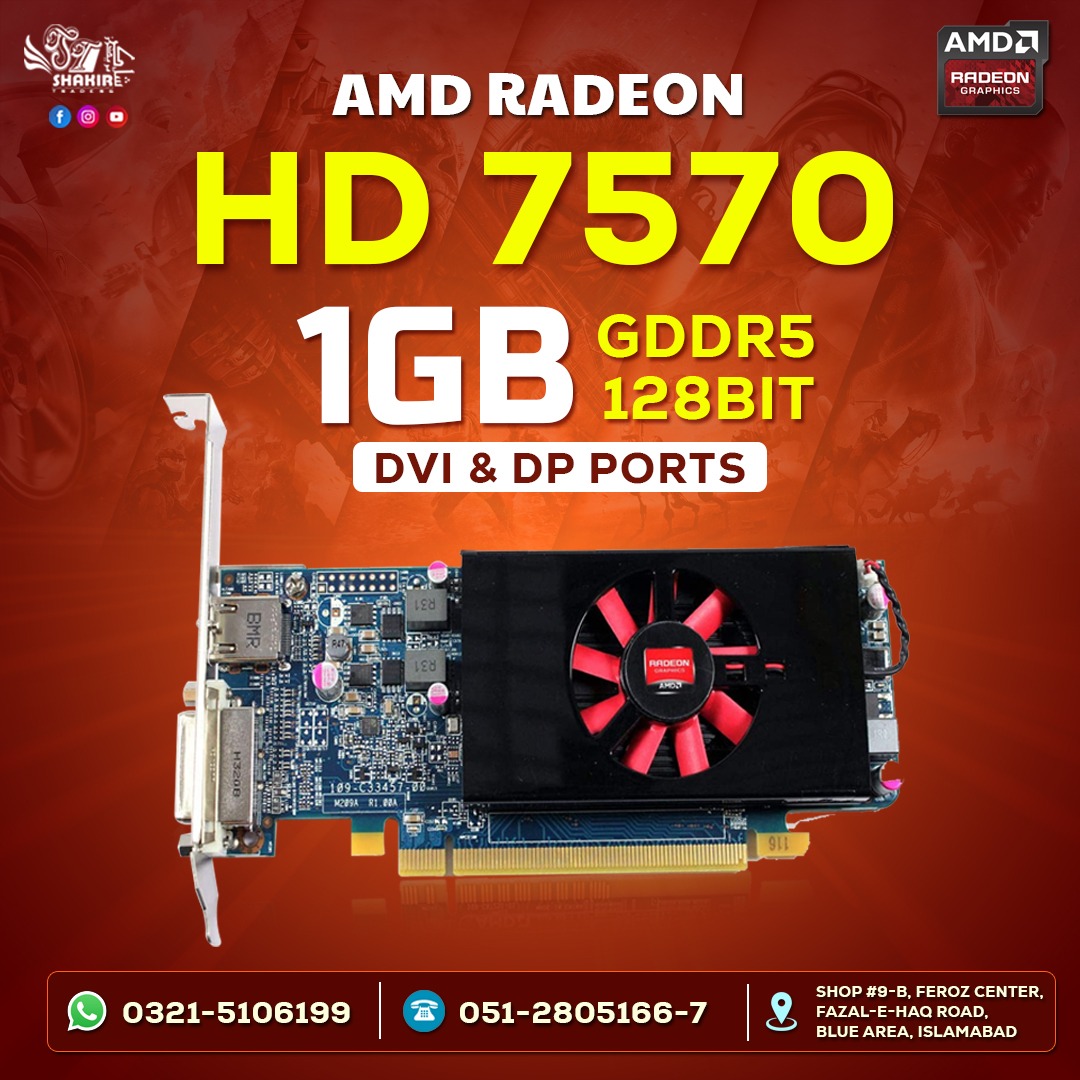

AMD HD 7570 1GB (Used)

Memory

Memory Size
1024 MB
Memory Type
GDDR5
Memory Bus
128 bit
Bandwidth
25.60 GB/s

Original price was: ₨6,000.00.Current price is: ₨4,500.00.

14 People watching this product now!
  • Pick up from the Shakir Traders Store

To pick up today

  • Courier delivery

Our courier will deliver to the specified address

3-5 Days

مختلف مصنوعات پر شپنگ کی قیمتیں مختلف ہو سکتی ہیں۔ براہ کرم آرڈر دینے سے پہلے کال پر شپنگ کی قیمتوں کی تصدیق کریں۔

Payment Methods:

Description

AMD HD 7570 1GB (Used)

AMD HD 7570 1GB (Used)

The Radeon HD 7570 was a graphics card by AMD, launched on January 5th, 2012. Built on the 40 nm process, and based on the Turks graphics processor, in its Turks PRO-L variant, the card supports DirectX 11.2. The Turks graphics processor is an average sized chip with a die area of 118 mm² and 716 million transistors. It features 480 shading units, 24 texture mapping units, and 8 ROPs. AMD has paired 1,024 MB GDDR3 memory with the Radeon HD 7570, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 650 MHz, memory is running at 800 MHz.
Being a single-slot card, the AMD Radeon HD 7570 does not require any additional power connector, its power draw is rated at 60 W maximum. Display outputs include: 1x DVI, 1x HDMI 1.3a, 1x VGA. Radeon HD 7570 is connected to the rest of the system using a PCI-Express 2.0 x16 interface.

Graphics Processor

GPU Name
Turks
GPU Variant
Turks PRO-L
Architecture
TeraScale 2
Foundry
TSMC
Process Size
40 nm
Transistors
716 million
Density
6.1M / mm²
Die Size
118 mm²
Chip Package
FCBGA-962

Graphics Card

Release Date
Jan 5th, 2012
Generation
Southern Islands
(HD 7500)
Predecessor
Northern Islands
Successor
Sea Islands
Production
End-of-life
Bus Interface
PCIe 2.0 x16

Clock Speeds

GPU Clock
650 MHz
Memory Clock
800 MHz
1600 Mbps effective

Memory

Memory Size
1024 MB
Memory Type
GDDR5
Memory Bus
128 bit
Bandwidth
25.60 GB/s

Render Config

Shading Units
480
TMUs
24
ROPs
8
Compute Units
6
L1 Cache
8 KB (per CU)
L2 Cache
256 KB

Theoretical Performance

Pixel Rate
5.200 GPixel/s
Texture Rate
15.60 GTexel/s
FP32 (float)
624.0 GFLOPS

Board Design

Slot Width
Single-slot
TDP
60 W
Suggested PSU
250 W
Outputs
DVI
DP
Power Connectors
None
Board Number
C245,
C331,
C334

Graphics Features

DirectX
11.2 (11_0)
OpenGL
4.4
OpenCL
1.2
Vulkan
N/A
Shader Model
5.0
